Antenna Roof Mount (Non-Penetrating)

Looking for no penetrating mount? This is a non-penetrating roof mount and also a ballast roof mount offering 30 inches to 60 inches mast in sizes ranging from 1-1/4 inch to 2-3/8 inch outside diameter (OD).

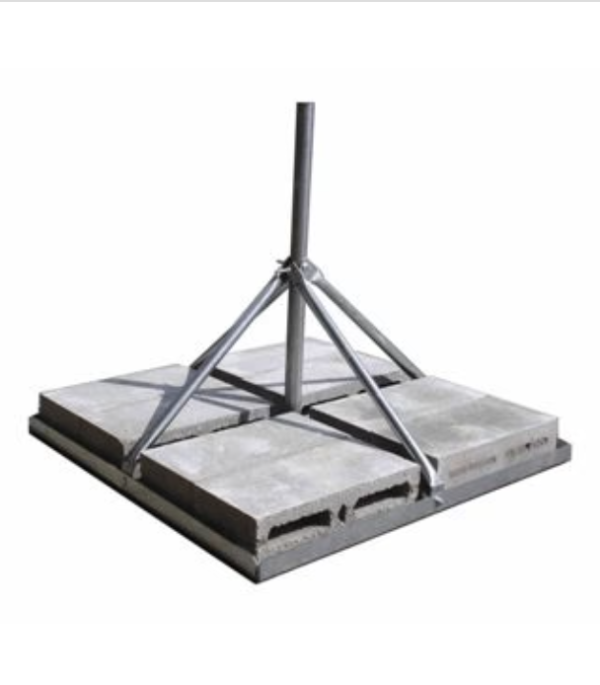

The base of the ballast roof mount is 34-3/4″ square with trays to fit the concrete blocks, for ballast mount.

The Rohn FRM125-AFC roof mount is hot dip galvanized for corrosion protection and goes together quickly.

Additional Features Include:

• No penetration on roof surface.
• Galvanized for corrosion protection.
• Designed for concrete block ballast mount.
• Assembly is quick and easy.
• Minimum of bolted connections.
• Optional roof pads or mats are available.

Options Available:

• FRM125: 60 inches pole with 1.25 inch Outside Diameter.
• FRM166: 30 inches pole with 1.66 inch Outside Diameter.
• FRM200: 30 inches pole with 2 inch Outside Diameter.
• FRM225: 60 inches pole with 2.25 inches Outside Diameter.
• FRM238HC: 30 inches pole with 2.375 inches Outside Diameter.
• FRM238SP5HC: 60 inches pole with 2 3/8 inches Outside Diameter.

Why Buy This Antenna Roof Mount (Non-Penetrating)?

The FRM-Series is a non-penetrating roof mount for Direct Broadcast Satellite, off air antenna, satellite internet systems and point to point CCTV signal transmission. Using standard 8″ x 8″ x 16″ cinderblocks as ballast, the FRM 125, 166, 200, 225, 238, 238HC and 238SP5HC provides a durable and reliable mounting platform to mount your equipment, without damaging your roofing surface.

Benefits:

• For use with DBS, off-air antenna, satellite internet systems and point to point CCTV signal transmission.
• Galvannealed steel construction.
• Holds up to eight 8″ x 8″ x 16″ standard concrete blocks to anchor.
• Dark gray weather resistant powder coat finish.
• Read data sheet for more benefits and details.
